Recap from Yesterday

Reviewed Intermediate Mathematical Statistics
- You should be more comfortable with writing math into R
Reviewed Regression Analysis
- You should be comfortable to get access to the data from the summary table of a regression

Introduction

In this lecture, we are going to learn more about ggplot2 to do data visualization and use another comprehensive project to help you summarize this class with the following topics:

Download data sets from external website into well-designed working directories
Load, Append data sets into one data set.
Data cleaning
- Re-code
Data descriptive statistics:
- How many observations
- Unique Identifier
Data Analysis:
- Run regression
  - Matrix Calculations with loops by given mathematical expression (e.g.: confidence interval)
- Data Visualization
Write, code and output a Rmarkdown report

Data Visualization with `ggplot2` in R

Introduction

ggplot2 is a powerful and versatile plotting system in R that allows for the creation of complex plots in a structured manner. Today, we’ll explore the basics of ggplot2 and advance to more complex visualizations.

Basic Visualization with Simulated Data

Visualize Random Vectors

Open your lec5_stu.R script file
Generate 100 random numbers from a standard normal distribution use rnorm(100), assign the value the the vector x; generate another 100 random numbers and assign it to error
- Remember to set.seed(ANY NUMBER YOU LIKE) for reproducible before everything
Create a vector y with this math expression: $y=2x+\epsilon$
Use plot(x), plot(y), plot(error), plot(x,y) and check what you see.

set.seed(123) # Setting seed for reproducibility

x <- rnorm(100) # Generate 100 random numbers from a standard normal distribution
y <- 2*x + rnorm(100) # Linear relationship with some random noise
error <- rnorm(100) # Error term

# plot(x)
# plot(y)
# plot(error)

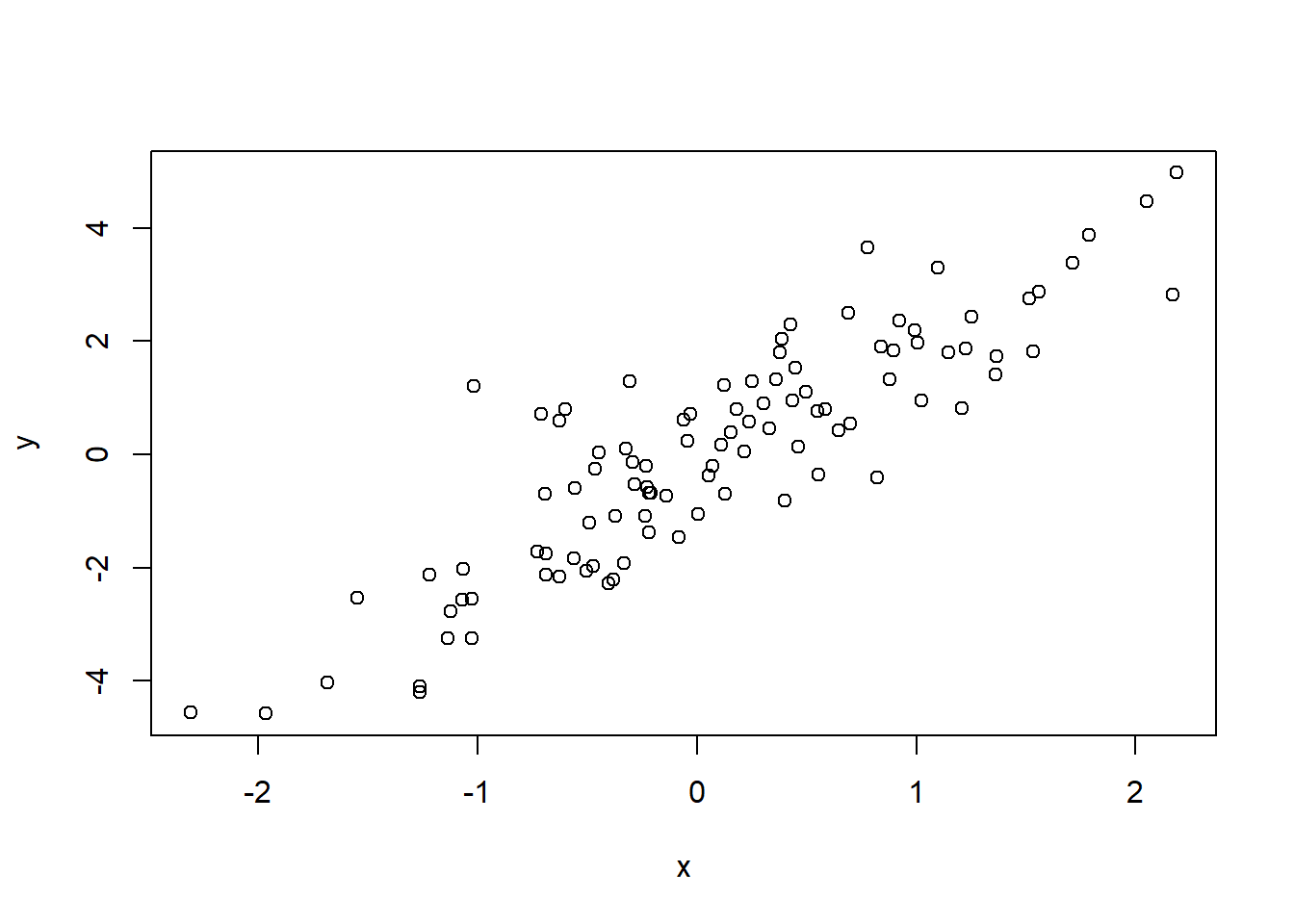

plot(x, y)

How to use ggplot2 to do it?

Syntax: ⁠ggplot(data = df, mapping = aes(x, y, other aesthetics))⁠
- In this case, you need to create a data frame first.
- Then, you need to define what layer you need:
  - For example, a scatter plot only need geom_point() layer
- You also have the option to choose the theme, use the theme_minimal() for now

library(ggplot2)

# Basic scatter plot of x against y

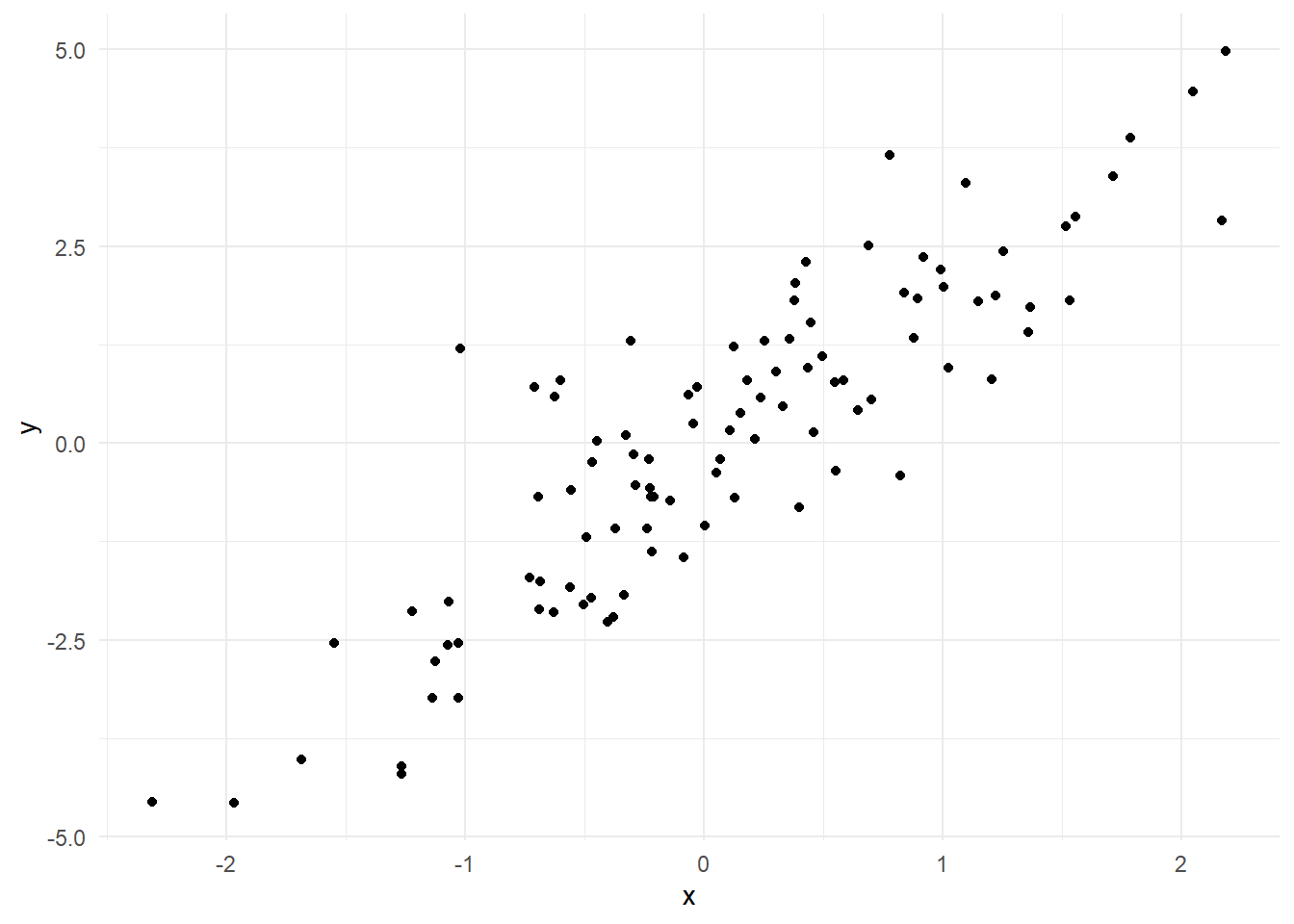

ggplot(data.frame(x=x, y=y), aes(x=x, y=y)) +
  geom_point() +
  theme_minimal()

Unknown Distribution

What if we do not know the distribution and would like to check how each vectors (in the real-world data, it should be variables) is distributed?

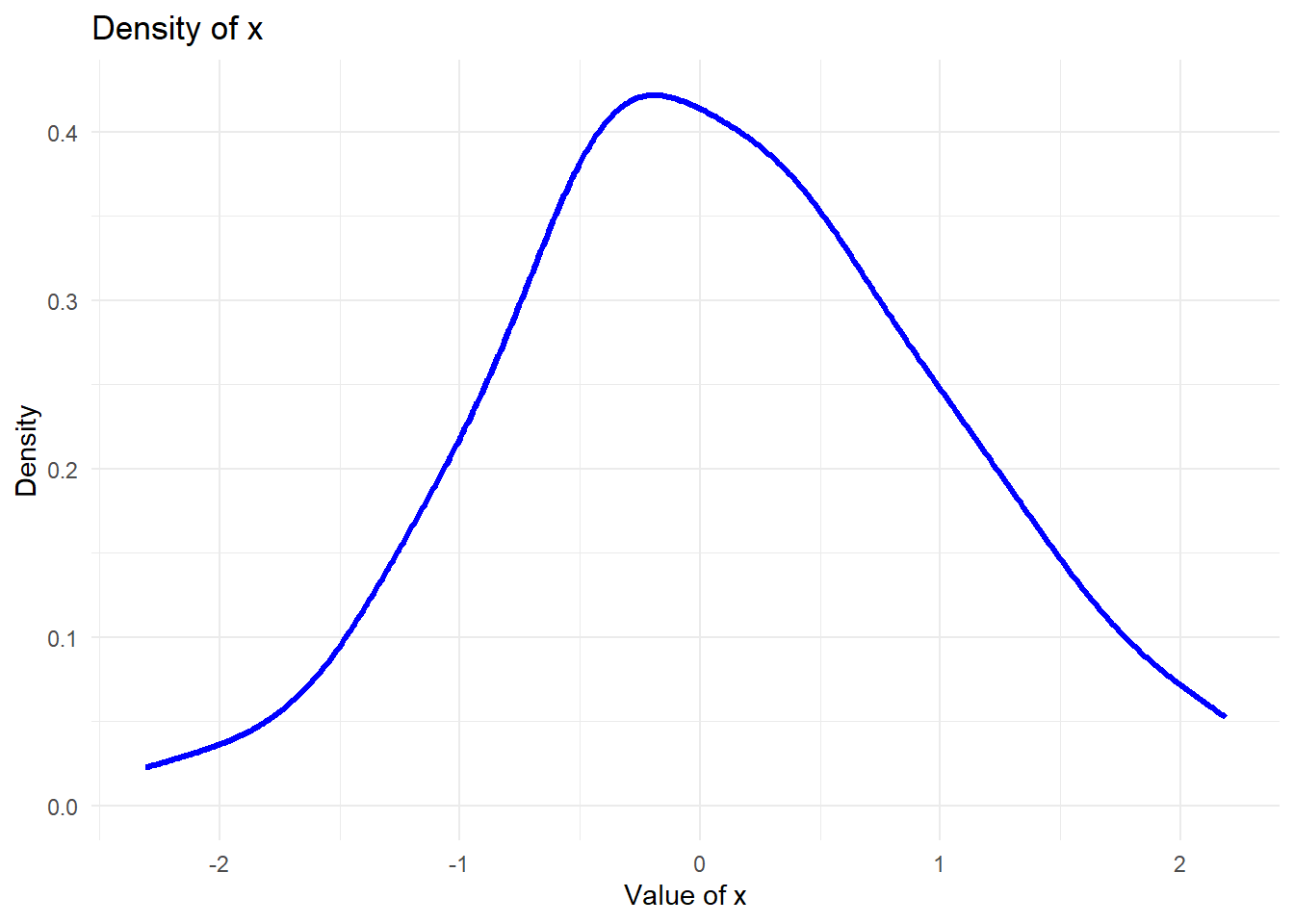

ggplot(data.frame(x=x), aes(x=x)) +
  geom_density(color="blue", size=1.2) +
  theme_minimal() +
  labs(title="Density of x", x="Value of x", y="Density")

Regression and Visualization

# Fit a linear model
model <- lm(y ~ x)

# Plot the data along with the regression line

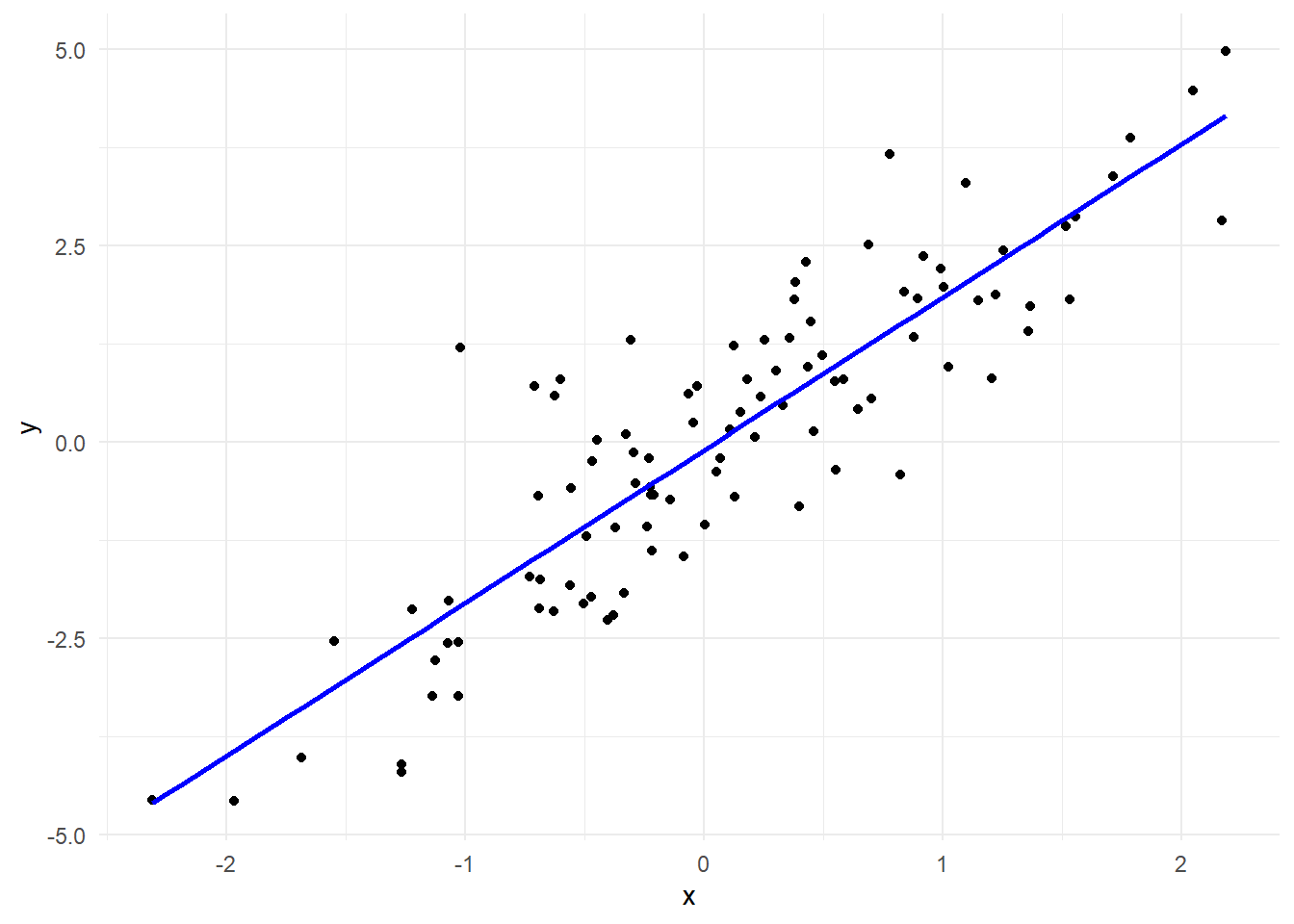

ggplot(data.frame(x=x, y=y), aes(x=x, y=y)) +
  geom_point() +
  geom_smooth(method="lm", se=FALSE, color="blue") + # Regression line
  theme_minimal()

`geom_smooth()` using formula = 'y ~ x'

Question 1 - Plot the density for error - change the color to red, size to 0.5 - Title change to “Density of Error Term” - Label for x-axis: “Value of error terms” - Label for y-axis: “Density”

Question 2

Plot the scatter plot for x and error. Are they Independent by eye-browsing?
- For the layers added, try this following code:
```
geom_point(aes(color = ifelse(x > 0, "blue", "red"))) + scale_color_identity() + theme_minimal()
```

Question 3

For the regression analysis visualization, copy and paste the code but only change the following line
```
geom_smooth(method="lm", se=TRUE, color="blue") + # Regression line
```
- What did you see?

Question 1

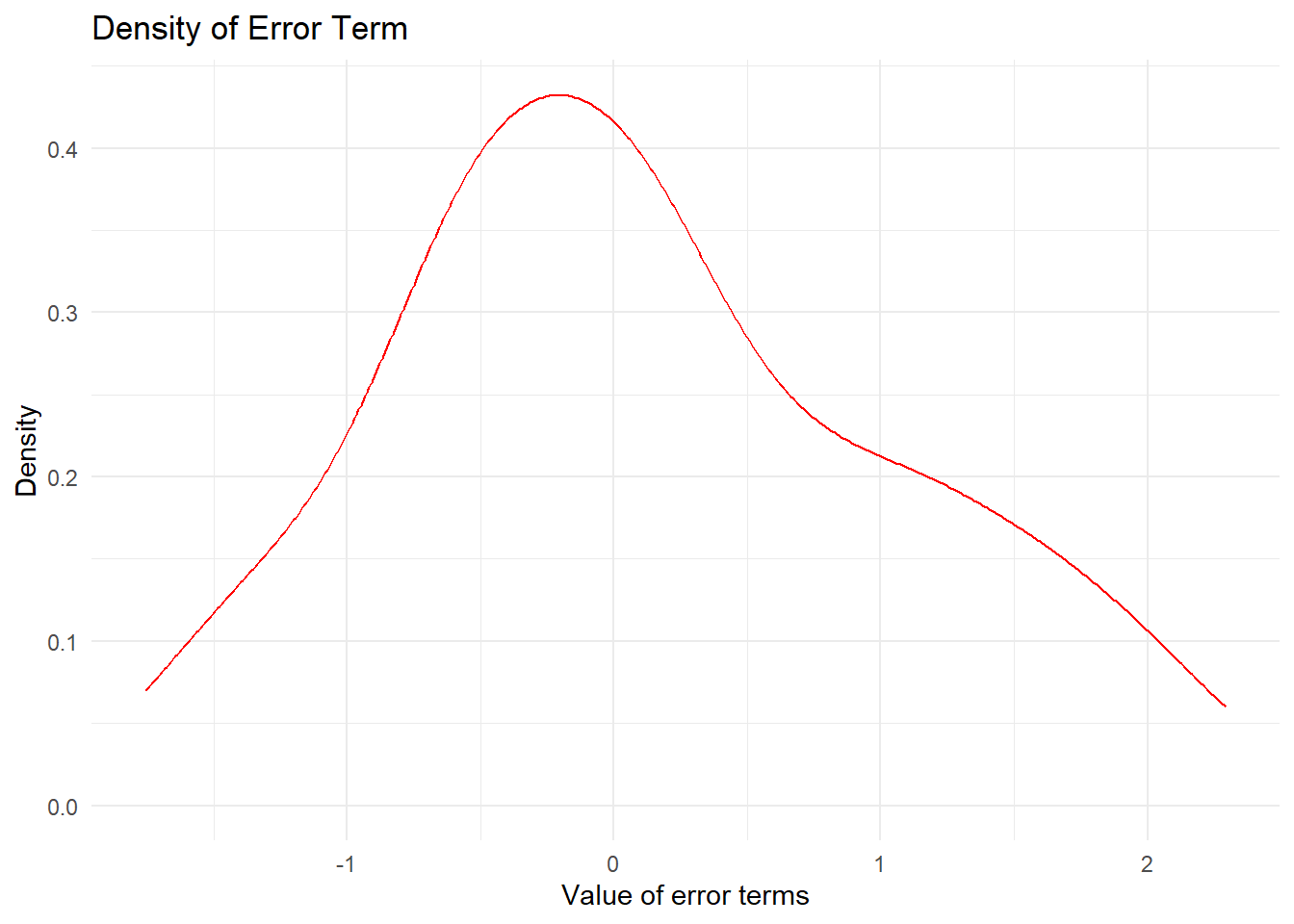

ggplot(data.frame(x=error), aes(x=error)) +
  geom_density(color="red", size=0.5) +
  theme_minimal() +
  labs(title="Density of Error Term", x="Value of error terms", y="Density")

Question 2

library(ggplot2)

# Basic scatter plot of x against error

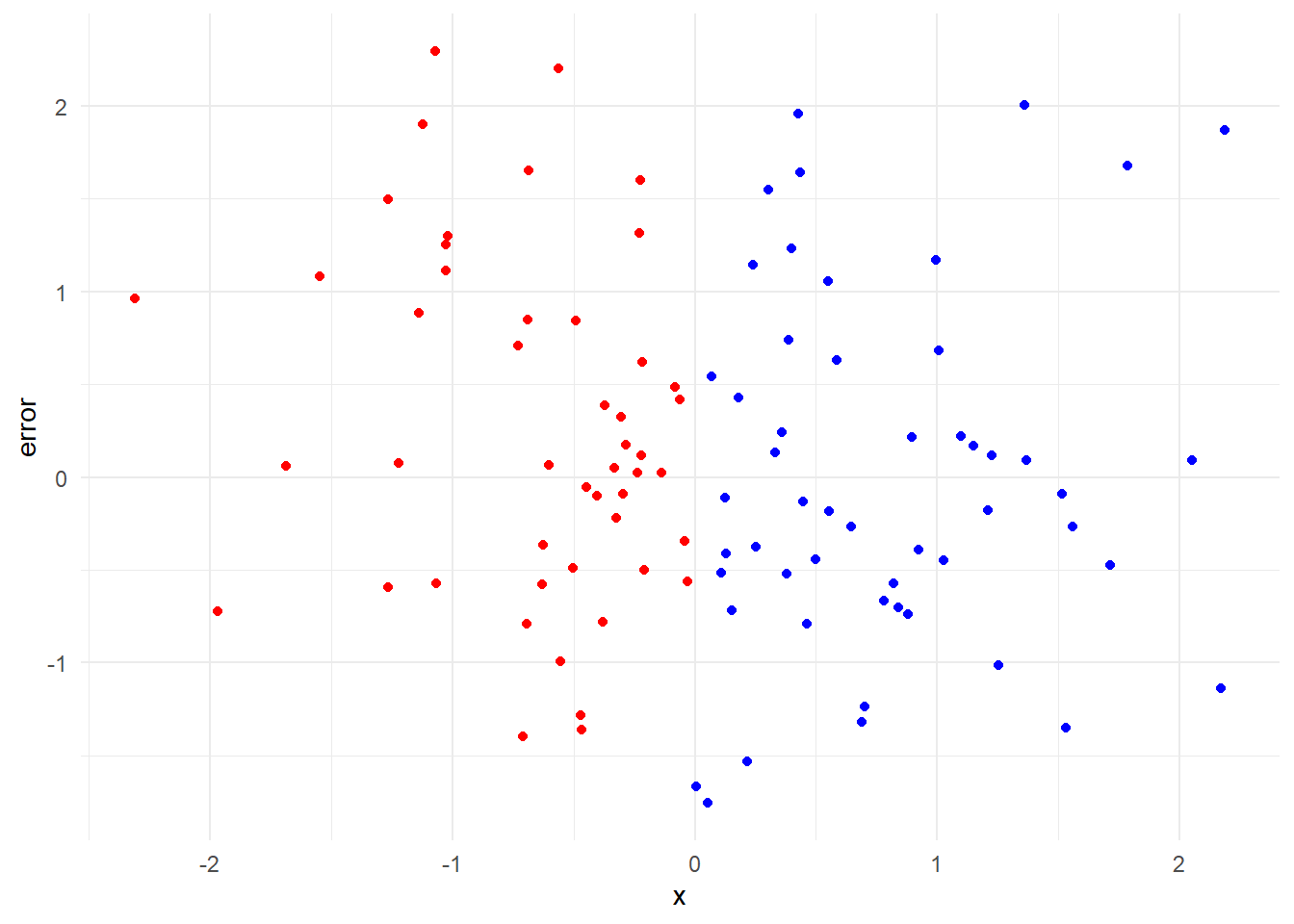

ggplot(data.frame(x=x, y=error), aes(x=x, y=error)) +
  geom_point(aes(color = ifelse(x > 0, "blue", "red"))) +
  scale_color_identity() +
  theme_minimal()

Question 3

# Fit a linear model
model <- lm(y ~ x)

# Plot the data along with the regression line
ggplot(data.frame(x=x, y=y), aes(x=x, y=y)) +
  geom_point() +

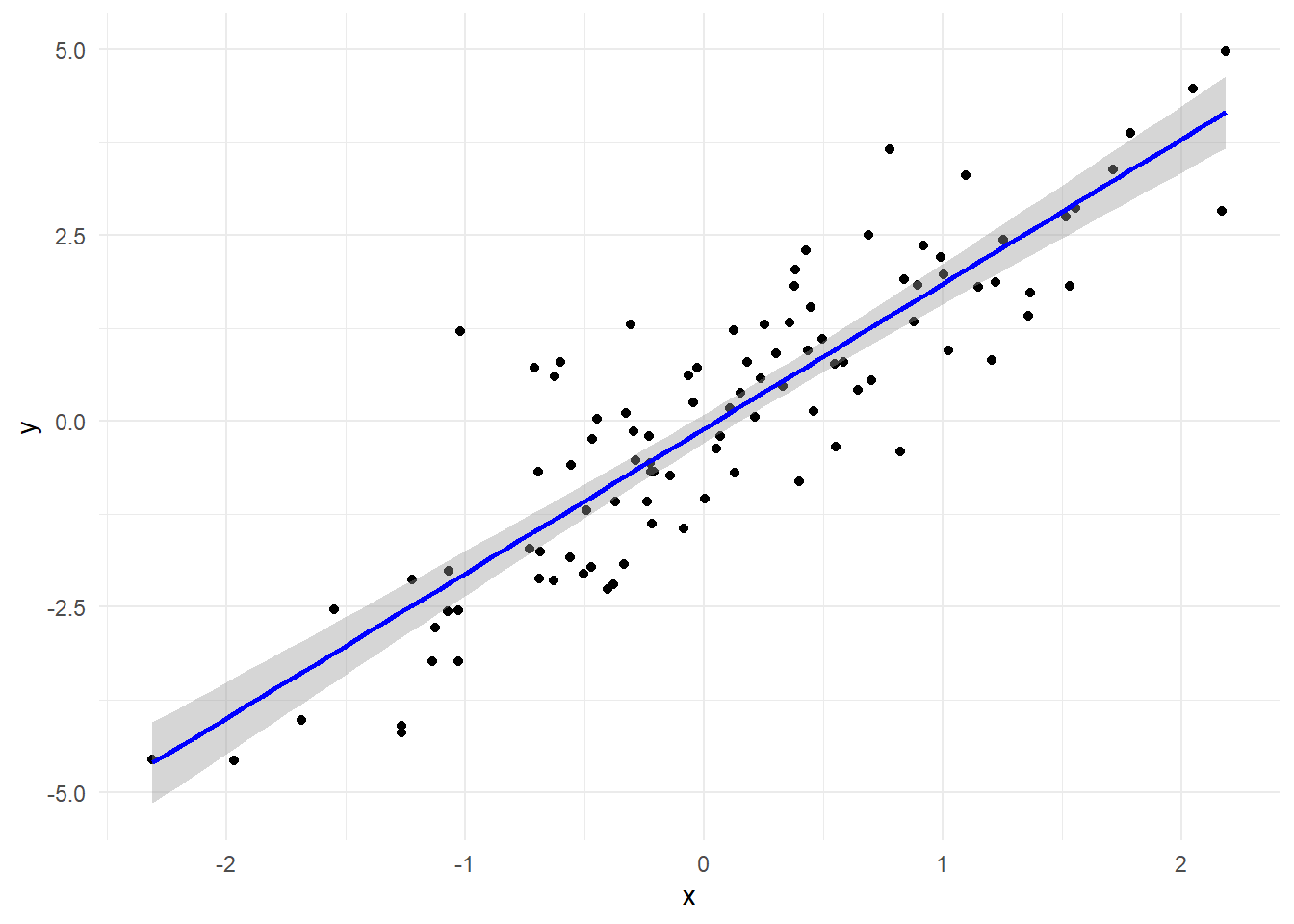

  geom_smooth(method="lm", se=TRUE, color="blue") + # Regression line
  theme_minimal()

`geom_smooth()` using formula = 'y ~ x'

2. Visualization with `mtcars` Dataset

Basic Histogram

# Histogram of mpg (miles per gallon)

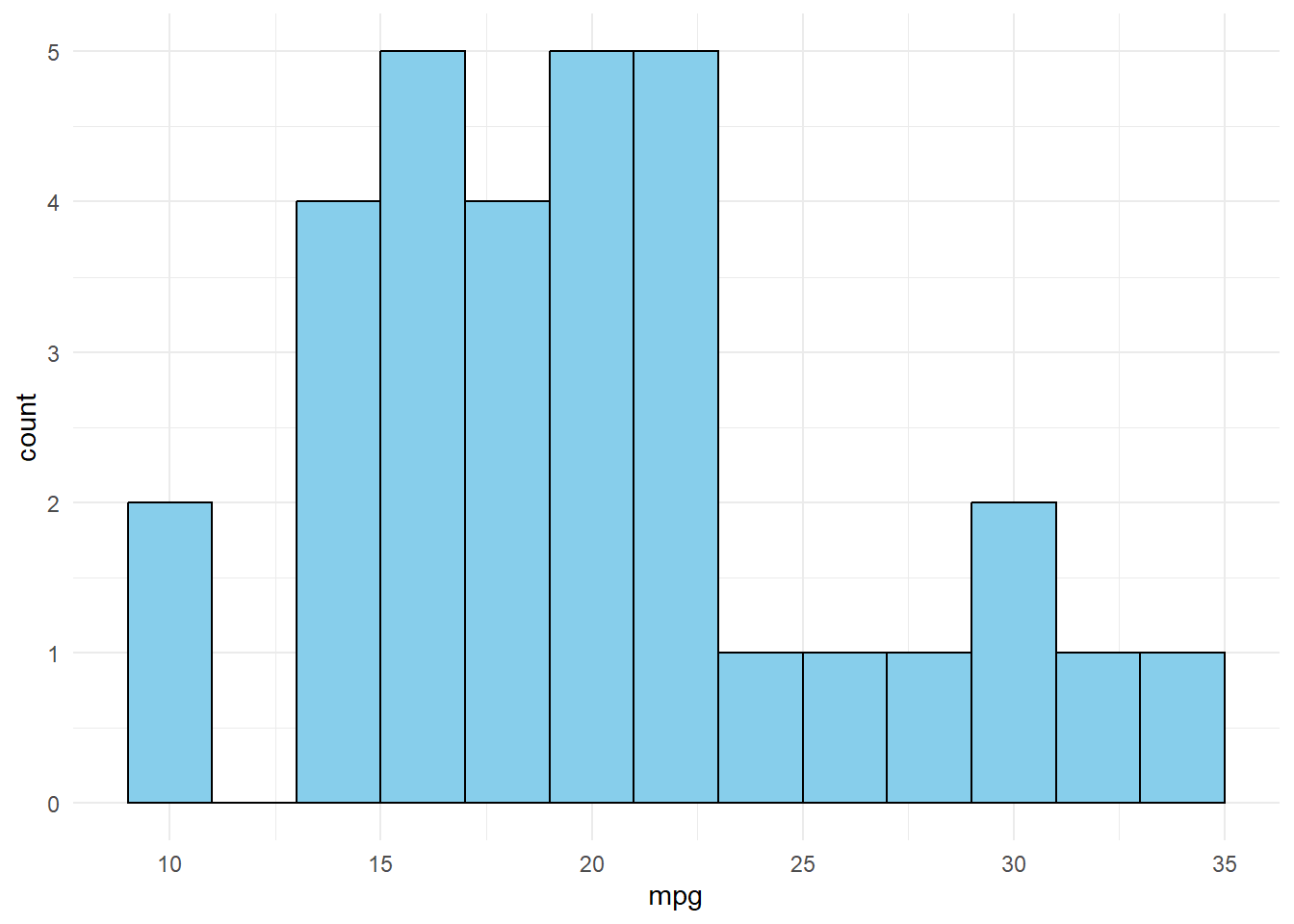

ggplot(mtcars, aes(x=mpg)) +
  geom_histogram(binwidth=2, fill="skyblue", color="black") +
  theme_minimal()

Boxplot by Groups

# Boxplot of mpg by number of gears

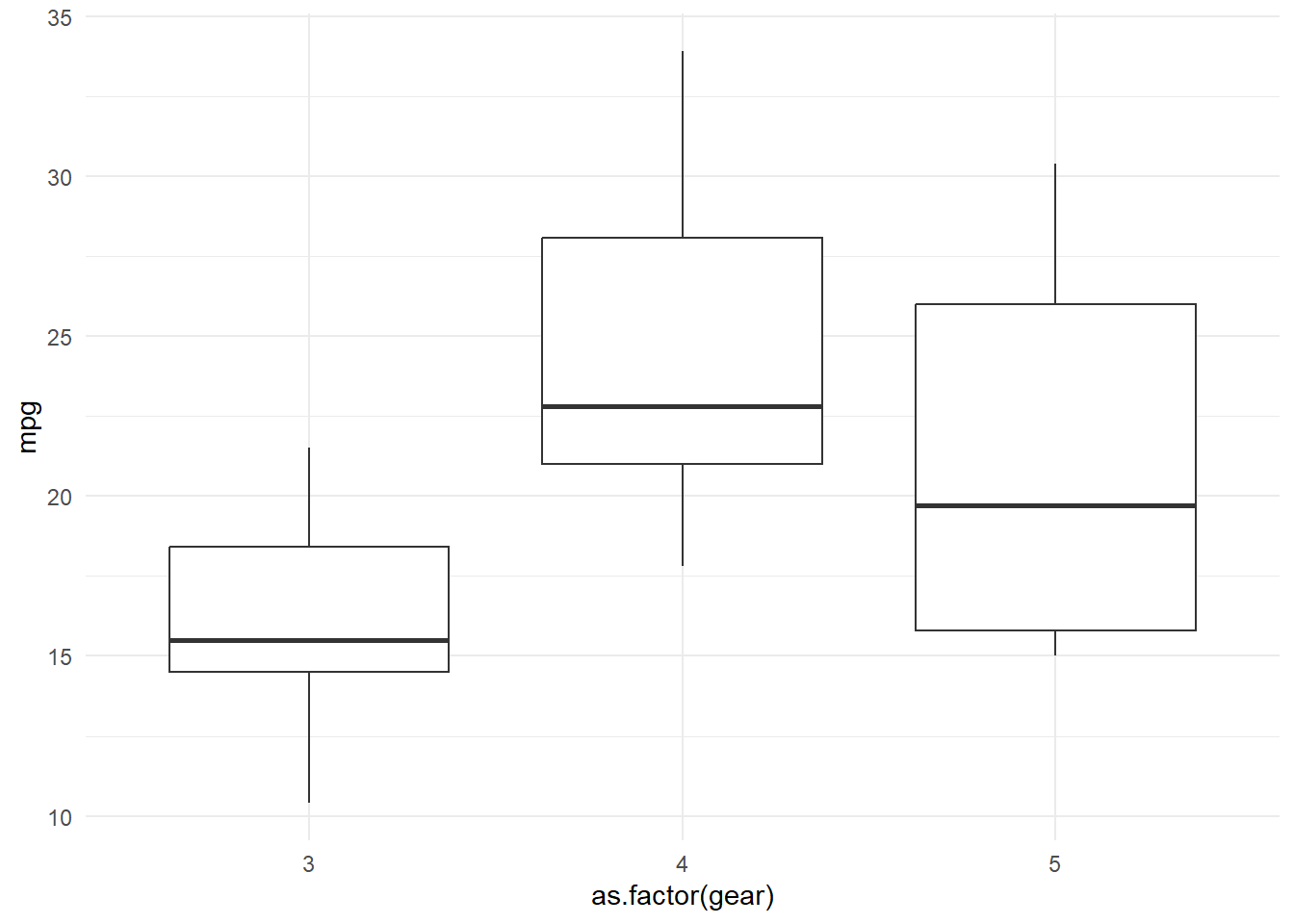

ggplot(mtcars, aes(x=as.factor(gear), y=mpg)) +
  geom_boxplot() +
  theme_minimal()

Faceted Plot

# Scatter plot of mpg vs. wt, faceted by number of gears

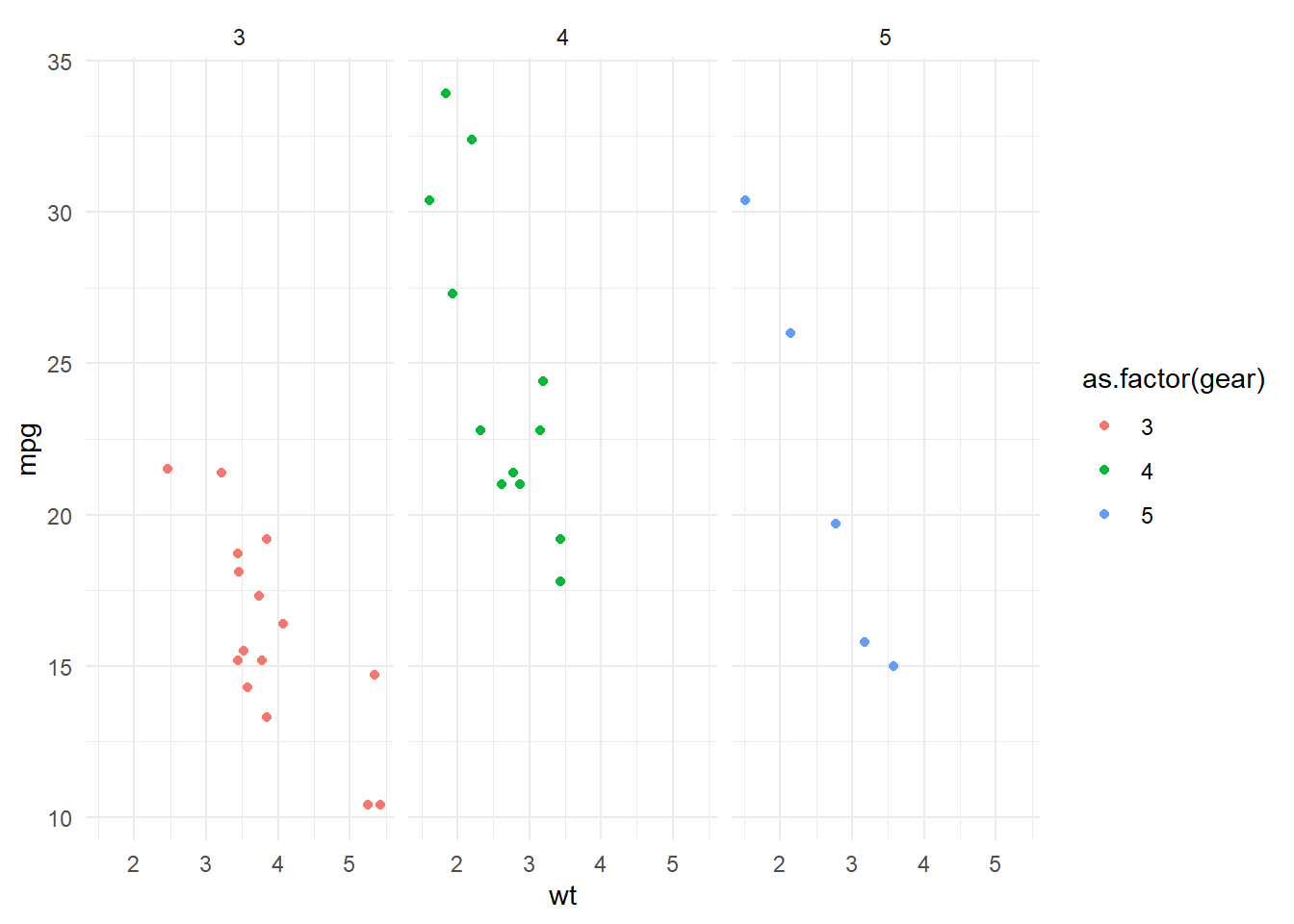

ggplot(mtcars, aes(x=wt, y=mpg)) +
  geom_point(aes(color=as.factor(gear))) +
  facet_wrap(~gear) +
  theme_minimal()

Exercise Session: Data Visualization with `mtcars` Dataset using `ggplot2`

Questions
Solutions

Instructions: Using the mtcars dataset and the ggplot2 library, complete the following exercises. Ensure each plot has an appropriate title and axis labels. If you are unsure how to do a question, use the help function to read the syntax. ?

Question 1. Modified Histogram

Task: Create a histogram of the hp (Horsepower) variable from the mtcars dataset. - Use a bin width of 10. - Fill the bars with the color “lightgreen” and set the border color to “darkgreen”.

Hint: Use the geom_histogram() function, similar to the histogram of mpg.

2. Boxplot with Modified Aesthetics

Task: Produce a boxplot of mpg (miles per gallon) against the number of carb (carburetors) in the cars. - Fill the boxes with the color “lightcoral”. - Set the color of the outliers to “darkred”.

Hint: Recall the aes() function within geom_boxplot() to modify outlier aesthetics.

3. Multi-Faceted Scatter Plot

Task: Create a scatter plot that displays the relationship between drat (Rear axle ratio) and qsec (Quarter mile time). - Facet the plot by cyl (Number of cylinders) in the cars. - Color the points based on vs (Engine shape: 0 = V-shaped, 1 = straight). - Ensure different shapes for points based on vs.

Hint: Use facet_wrap() for faceting and consider the shape aesthetic in geom_point().

1. Modified Histogram

library(ggplot2)

# Histogram of hp (Horsepower)

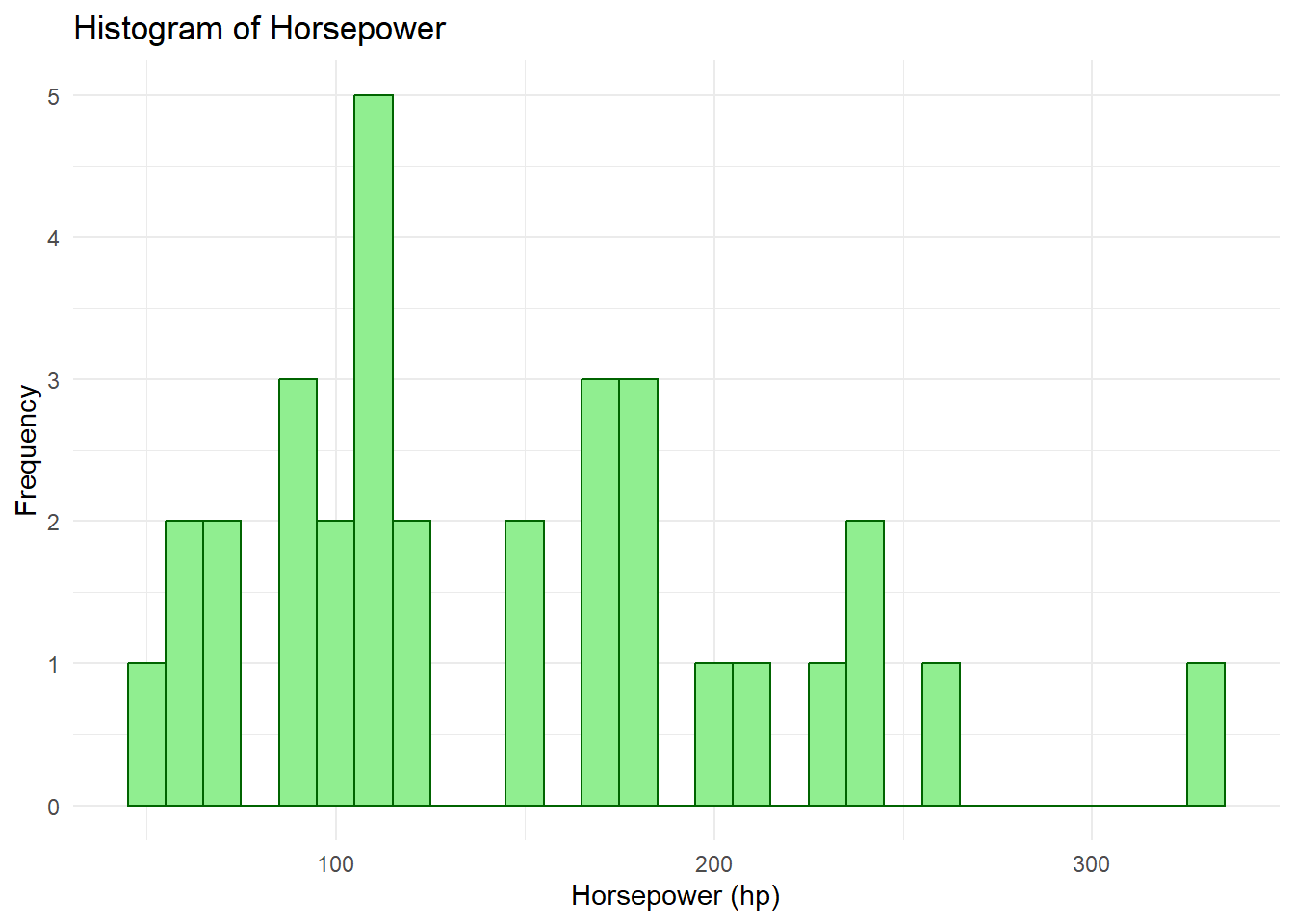

ggplot(mtcars, aes(x=hp)) +
  geom_histogram(binwidth=10, fill="lightgreen", color="darkgreen") +
  theme_minimal() +
  labs(title="Histogram of Horsepower", x="Horsepower (hp)", y="Frequency")

Explanation: The geom_histogram() function is used to create a histogram of the hp column from the mtcars dataset. The fill and color arguments are used to customize the appearance of the histogram bars. The labs() function adds a title and axis labels for clarity.

2. Boxplot with Modified Aesthetics

# Boxplot of mpg by number of carburetors

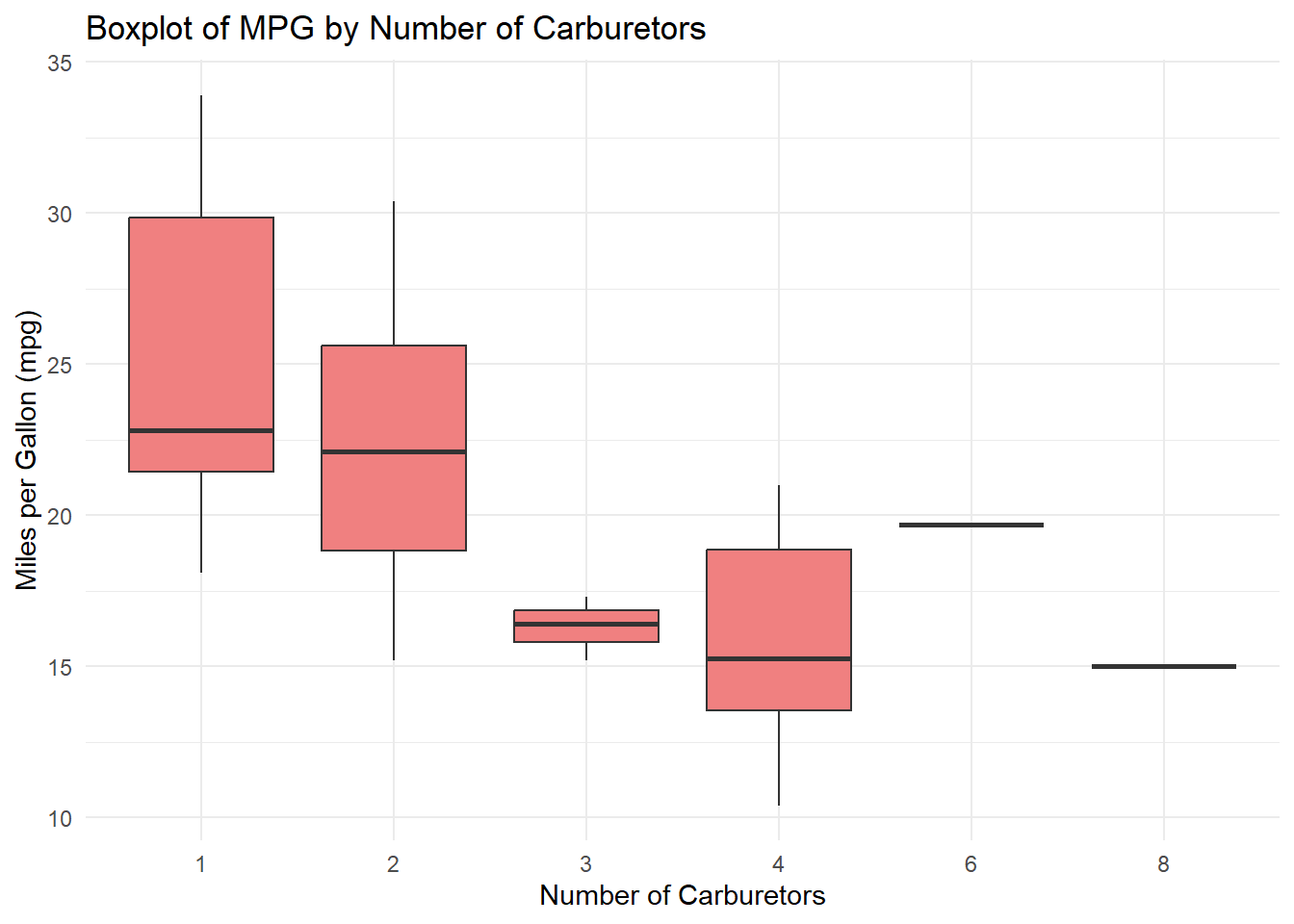

ggplot(mtcars, aes(x=as.factor(carb), y=mpg)) +
  geom_boxplot(fill="lightcoral", outlier.color="darkred") +
  theme_minimal() +
  labs(title="Boxplot of MPG by Number of Carburetors", x="Number of Carburetors", y="Miles per Gallon (mpg)")

Explanation: The geom_boxplot() function is used to create a boxplot of the mpg column against the number of carburetors (carb). The fill argument sets the color of the boxes, and the outlier.color argument changes the color of the outliers. Again, the labs() function is used to provide a title and axis labels.

3. Multi-Faceted Scatter Plot

# Scatter plot of drat vs. qsec, faceted by number of cylinders
ggplot(mtcars, aes(x=drat, y=qsec)) +
  geom_point(aes(color=as.factor(vs), shape=as.factor(vs))) +
  facet_wrap(~cyl) +
  theme_minimal() +

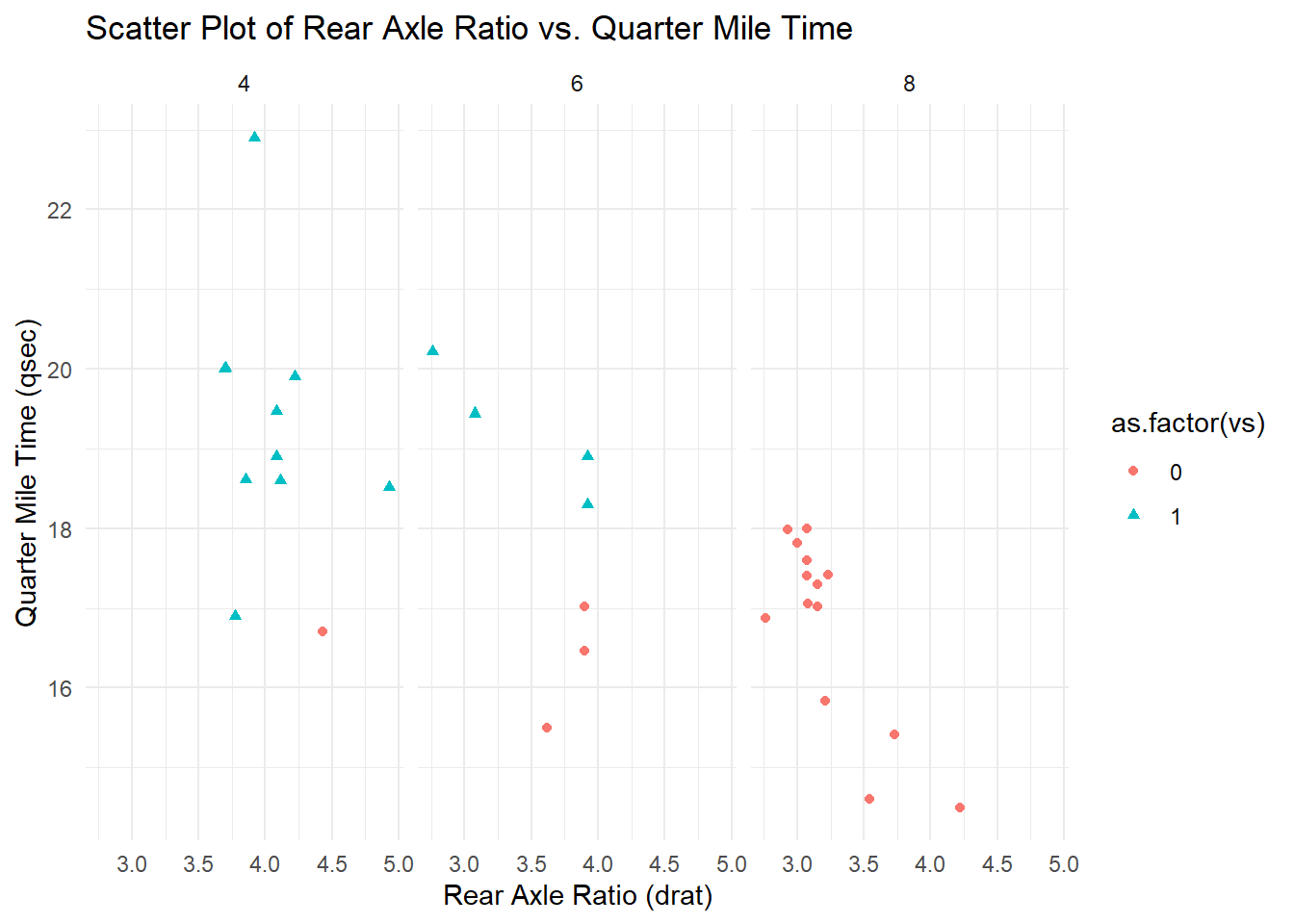

  labs(title="Scatter Plot of Rear Axle Ratio vs. Quarter Mile Time",
       x="Rear Axle Ratio (drat)",
       y="Quarter Mile Time (qsec)")

Explanation: The geom_point() function creates a scatter plot of drat against qsec. The points are colored and shaped based on the engine shape (vs). The facet_wrap() function is used to facet the plot by the number of cylinders (cyl). The title and axis labels provide context to the visualization.

Final Comprehensive Project

Introduction

For this project you will need to play with the external data source from the website, and as I introduce you at the begining of the class, this project will ask you to finish some tasks to help you review what we have learned in this week. You should finished this project using the lec5_proj.Rmd file as your workbook. And remind yourself to create your directories in the following format:

lec5–>
- lec5_proj–>
  - code–>
    - lec5_proj.Rmd
  - data–>
    - raw
      - privateschools2021.xlsx
    - temp
    - cleaned

Tasks and Steps

Workflows Setup

Organize your directories as I showed above.
Create your own lec5_proj.Rmd in the code folder: just copy and paste what I gave you yesterday to here and change the title.
Download data sets from this website into folder raw: Only 20-21. Remember that raw folder is a subfolder of data. Scroll down and download the all the Excel files into your raw folder.

Setup your working directories: `setwd()`

Load Libraries:

library(readxl)
library(eeptools)
library(dplyr)
library(stringr)

Load Data:

Use this code to load your data:
- ps2021 <- read_excel("../data/raw/privateschools2021.xlsx", skip = 2)

First-round Data Scaning

How many observations and variables are there in the data? Use dim(ps2021). In your Rmd file, after the code, answer this question.
What is the unique identifier for this data? Hint: test CDS Code
- isid(df, "id", verbose = TRUE)
- length(unique(DATA$UID))==nrow(DATA)

Data Cleaning

Use the library(dplyr) to select the columns we would like to focus on:
- County, CDS Code, School Name, Zip, School Phone Number, School Classification, Total Enrollment, Full Time Teachers, Part Time Teachers
- You need to use the select function
Use within() function to Rename columns, add a new column, and delete a column, here is an example on how to use within()

# Using within() to rename a column and add a new column
data <- within(data, {
  new_column_name <- old_column_name
  new_column <- "New data"
  rm(old_column_name)
})

Specifically:
- Replace the space in the variables’ name with underscore.
- Change all variables’ name to lowercase.
- Use tolower() to change it into lower case
- Use str_replace_all to replace the space.
Try this code inside your within() if you cannot figure it out: names(df_selected) <- str_replace_all(str_to_lower(names(df_selected)), " ", "_")

Text Cleaning: get rid of the - in the phone number
Save the cleaned data into the folder cleaned.

Data Analysis

How many unique School Classification are there in the data? use length(unique())
Use ggplot2 with a histogram to show the Distribution of Schools by Religious Classification.
- First, you need to goes into school_classification’s column and recategorize the classification by changing every values that is not Non-Religious or Other into Religious
- Use the histogram to show the distribution for those three larger categories.
Run a regression using total_enrollment as the dependent variable with full_time_teachers
Get the regression results’ coefficient, and use the coefficients to calculate the confidence interval for 95% confidence level (i.e. z* = 1.96). Suppose you are given the formula to calculate the confidence interval as follows:

\[\beta \pm z^* S E_\beta\]

Use ggplot2 to show the regression results and the confidence interval.

Solution

You can find the solution here.

Reference

An Introduction to R
R for Graduate Student
R Markdown Cookbook
Introduction to Econometrics with R
R for Economics
Data Visualization with R
